Brushless motors possess unique features that make them ideal for precise speed control. In this section, we'll explore the advanced technologies that enhance the performance of these motors.

We will discuss the technology that enables brushless motors to run smoothly at low speeds.

5.1.1 Low Cogging Design

The pulsing vibration felt when turning a stepper motor shaft by hand while it is de-energized is known as cogging torque. Brushless motors utilize permanent magnets in their rotors, and the magnetic energy stored in the air gap between the rotor and stator varies depending on the rotor position. The alignment of the rotor and stator teeth alternates the magnetic energy repeatedly, generating cogging torque. If magnets with a high energy product are used, they produce higher cogging torque.

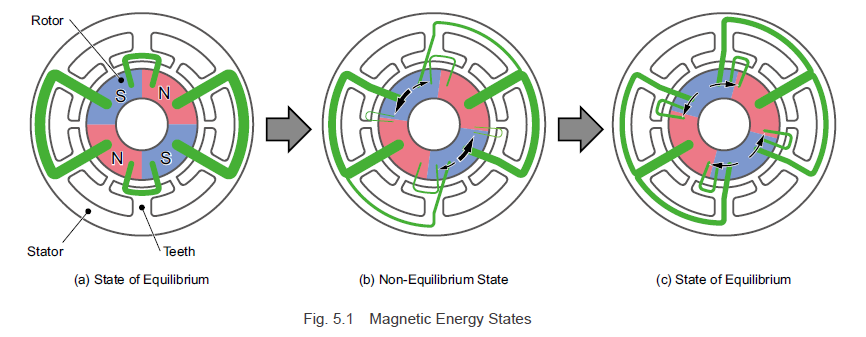

We will explain rotor angles and magnetic energy states using a motor with 4 rotor poles and 6 stator slots as shown in Fig. 5.1. The magnetic flux generated in the rotor magnets flows through the stator's iron core along the paths indicated by the green lines, moving from north to south. The thickness of the lines reflects the amount of magnetic flux, and the curvature of the lines toward the center reflects the unbalanced state of the magnetic energy. Force is generated in the rotor in the directions (indicated by the black arrows) where the magnetic flux tries to straighten out.

In the state shown in Fig. 5.1 (a), all magnetic flux points toward the center, and the magnetic energy for each slot is balanced. In the state shown in Fig. 5.1 (b), where the rotor has been rotated clockwise by 7.5°, the balance of the magnetic energy between the teeth facing the south pole is disrupted, and torques are generated in the directions and magnitudes matching those of the black arrows. The torques are in opposite directions, but the counterclockwise torque is stronger. In the state shown in Fig. 5.1 (c), where the rotor has been rotated another 7.5° clockwise, the balance of the magnetic energy between the teeth facing the south pole is disrupted again, and torques are generated in the directions indicated by the black arrows. These torques cancel each other out, preventing a cogging torque from forming.

Cogging torque is also generated when the motor is running. While operating, it acts as a change in load torque and provides smooth operation, so it needs to be kept low during magnetic design. A lot of research has been conducted on methods to reduce cogging torque.

The primary methods for reducing cogging torque include:

• Combining an appropriate number of teeth with an appropriate number of magnetic poles
• Making the rotor magnet arrangement or magnetization diagonal (rotor skew)
• Laminating the stator in a twisted manner (stator skew)
• Optimizing the shape of the magnets and stator
• Optimizing the waveform of the magnet magnetization

Combining an appropriate number of teeth with an appropriate number of magnetic poles is the most effective method for combating cogging torque. In general, the cogging torque period per motor rotation is the least common multiple of the number of magnetic poles and the number of teeth. The larger this least common multiple is, the lower the cogging torque becomes.

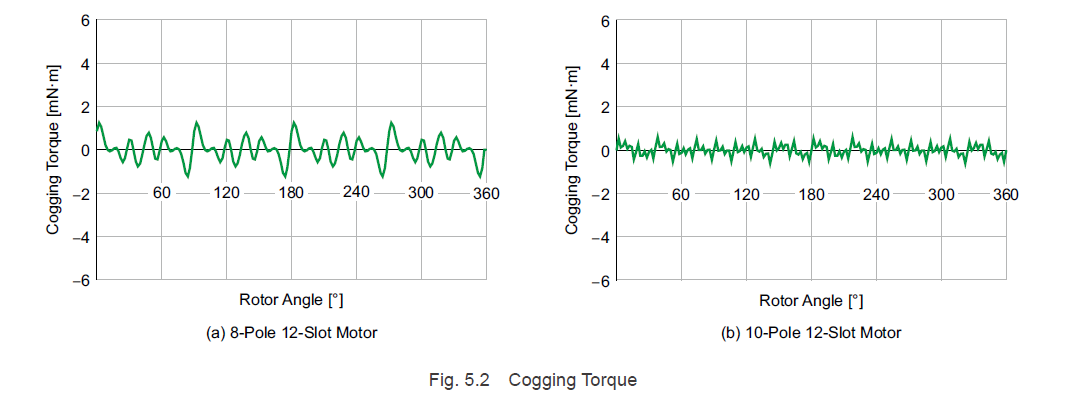

Fig. 5.2 compares the cogging torques of an 8-pole, 12-slot motor and a 10-pole, 12-slot motor. The number of cogging torque cycles per motor rotation is 24 for the 8-pole, 12-slot motor, and 60 for the 10-pole, 12-slot motor. The cycles generated by the 10-pole, 12-slot motor are finer, clearly showing a decrease in cogging torque amplitude.

Oriental Motor’s brushless motors are of the 10-pole, 12-slot type.

5.1.2 Sine Wave Drive

Using sine wave drive reduces the amplitude of torque ripples, allowing for smooth operation even during low-speed rotation. While the principle is explained in "3.2.2 For a Sine Wave Drive System," here we will discuss the prerequisites that form the core of this principle.

a. The Magnetic Flux Density Acting on the Windings

The magnetic flux density acting on the windings should ideally change in a true sinusoidal curve, as shown in Formula (3.2). If distortions occur in the sine waves, torque ripples are generated in the motor, causing speed ripples.

The methods for creating the ideal waveform for the magnetic flux density are the same as the methods for reducing cogging torque, and include the following:

• Optimal combination of number of teeth and number of magnetic poles
• Applying rotor skew or stator skew
• Optimizing the shape of the magnets and stator
• Optimizing the waveform of the magnet magnetization

However, the shape that reduces cogging torque is not necessarily the same as the shape that allows for the optimal magnetic flux distribution to be obtained, so the magnetic circuit design takes balance into consideration.

b. The Motor Current Consists of Sine Waves

As shown in Formula (3.6), it is ideal that the current flowing through the motor consists of sine waves. Just as with the magnetic flux density, if distortions occur, torque ripples are generated, which also cause speed ripples. To create the ideal current waveform, fine and accurate detection of the rotor magnetic pole positions is necessary. At Oriental Motor, intermittent processing of the hall effect IC signals using software allows us to obtain rotor magnetic pole position information at a high resolution.

5.1.3 Speed Detection Accuracy

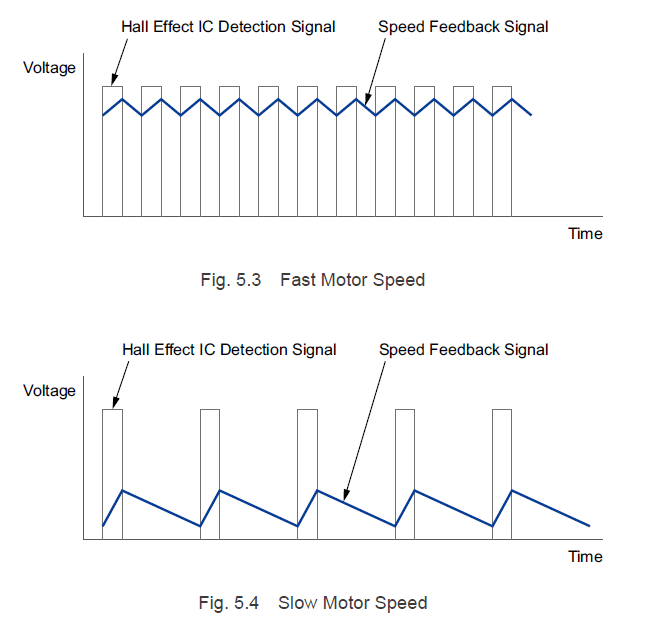

Brushless motors use speed calculators to convert signals from the hall effect ICs into rotation speed and obtain motor speed information. Low-speed operation of a motor widens the signal detection intervals from the hall effect ICs, as shown in Fig. 5.4, and the motor speed detection value changes periodically. If there are ripples in the feedback speed detection value, ripples will occur in the voltage (current) commands from the speed controller, which results in ripples in the motor speed.

Oriental Motor's brushless motors have increased the hall effect IC signal frequency by a factor of 2.5 by increasing the number of magnetic poles in the rotor from 4 to 10. This makes the feedback signals during low-speed operation smoother, reducing the ripples in the motor speed.

Since brushless motors use sensors for detecting magnetic poles, they have not been suited to low-speed operation. However, improvements in magnetic analysis technology, software signal processing technology, and drive technology have lowered the minimum operating speed from 300 RPM in 4-pole motors to 80 RPM. In addition, the output torque is constant even at the minimum speed, enabling smooth rotational control in a wide range of speeds.

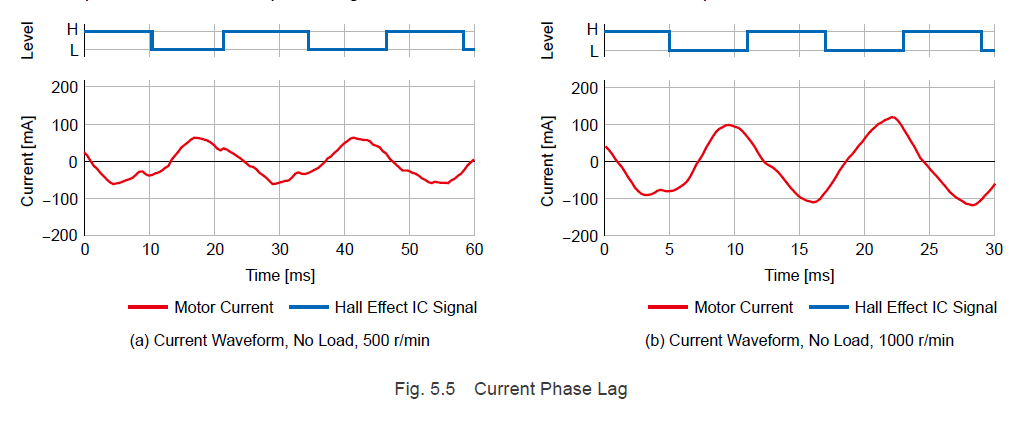

Hall effect IC signal waveforms and motor current waveforms are shown in Fig. 5.5.

Compared to 500 RPM, with regards to the hall effect IC signals, lag in the current waveforms and an increase in motor current can be observed at 1000 RPM.

When driving brushless motors, voltage is applied to the windings in accordance with the hall effect IC signals and excitation patterns. However, if the rotation speed increases, lag occurs in the current phases due to motor inductance. The lag that occurs in the current phases generates an ineffective electromagnetic force for the torque generated in the motor, decreasing the effective electromagnetic force. Because the motor performs control to maintain the rotation speed, the current is increased and the necessary torque is generated. Moreover, if the speed increases, the phase lag increases, and rotation ceases.

We will now explain the methods used to correct the current phase lag, which is necessary for making high-speed operation possible.

5.2.1 Output Torque Correction by Phase Control

Lead angle control allows for the output torque to be corrected by calculating the current phase lag according to the motor speed and advancing the voltage phase. The value by which the voltage phase is advanced is called the "lead angle," a, and it can be calculated using the following formula:

However, performing a calculation this complex requires a CPU with high processing power. For this reason, instead of using the formula as-is to perform the calculation, an approximate formula for the lead angle is used in the calculation.

The relationship between the lead angle and the rotation speed is shown in Fig. 5.6. In areas where the lead angle is large, since it changes almost linearly with regard to the rotation speed, a linear approximation formula can be used to express the relationship between the lead angle and the rotation speed. Similarly, the relationship between the lead angle and the applied voltage can also be expressed as a linear approximation, so the lead angle can be calculated from the rotation speed and applied voltage. However, because using only the linear approximation results in the efficiency and torque decreasing due to excessive phase advancement during low-speed, high-load operation, in reality, a limit is imposed upon the lead angle value.

The advantages of this control system are that the circuit configuration is simple due to the current loop not being necessary and that there are few motor control adjustment elements.

5.2.2 Vector Control

Vector control is a control method that utilizes mathematical techniques to convert the currents that flow through the windings of a three-phase motor into a model equivalent to that of a DC motor, thereby simplifying control.

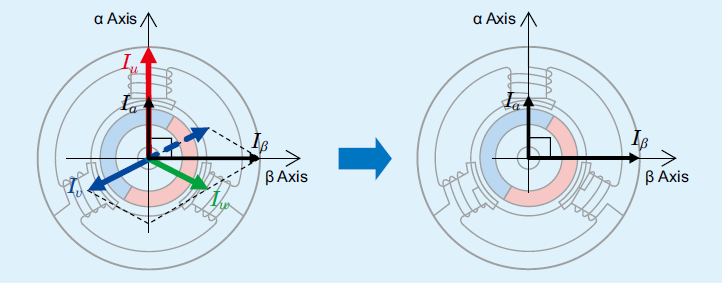

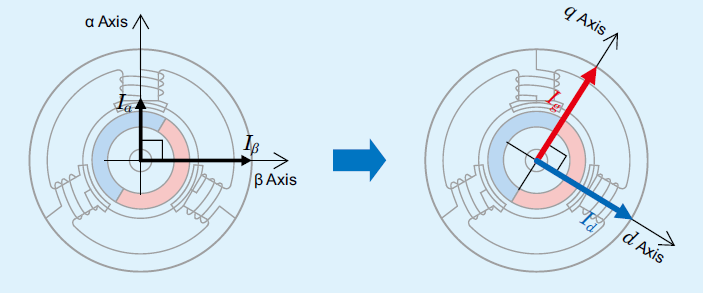

Currents that flow through phases U, V, and W of a brushless motor change constantly due to the motor torque and rotor rotation angle. Under these conditions, computational processing for current control is difficult. However, by converting a three-phase current into a two-phase current, and fixed coordinates into rotational coordinates, it is possible to split the current into the torque-generating component (q-axis component of current) and the magnetic flux-generating component (d-axis component of current), regardless of the rotor rotation angle.

In this state, by constructing a current loop to retrieve the detection values from the torque-generating q-axis component, and the magnetic flux-generating d-axis component of current adhere to the command value, the output torque and magnetic flux that pass through the windings (flux linkage) can be controlled at will.

Because the output torque and flux linkage can be controlled separately, the output torque and speed can be controlled with a high degree of responsiveness.

In addition, by controlling the flux linkage, it is possible to achieve maximum efficiency control for energy-saving operations. It is also possible to improve speed-torque characteristics, such as maximum torque control and field weakening control.

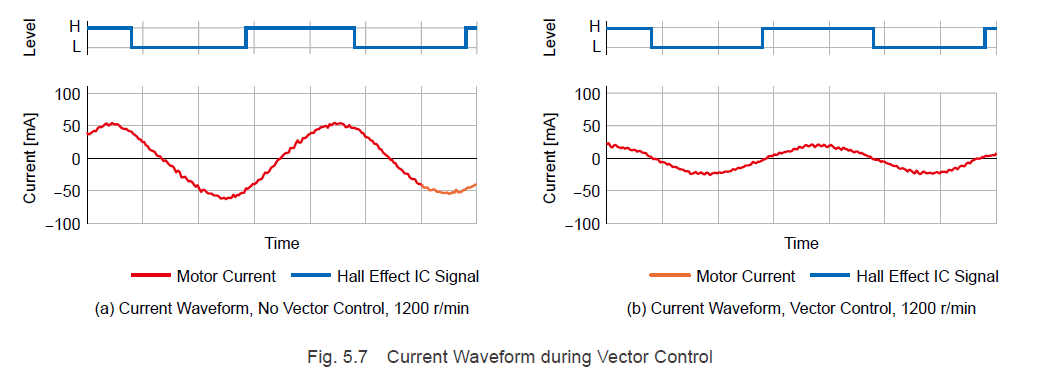

An example of a current waveform being improved through vector control is shown in Fig. 5.7. Fig 5.7 (a) shows the current waveform without vector control, and Fig. 5.7 (b) shows it with vector control. In the drive circuit, the motor current is controlled, such that it switches from negative to positive via the up edge of the hall effect IC output signal.

Without vector control, lag can be observed in the motor current.

In Fig. 5.7 (b), the hall effect IC signal up edge and current switching conform to one another, and the current phase lag disappears. In addition, performing vector control makes the motor current value smaller.

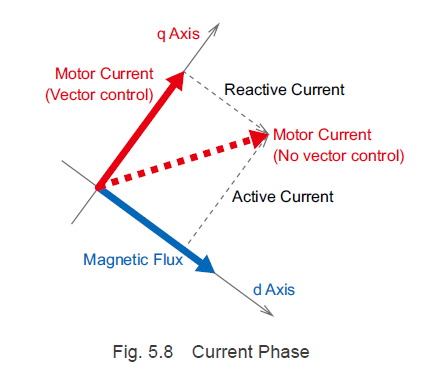

Displaying the states with and without vector control shown in Fig 5.7 as current vectors using rotational coordinates creates a figure like Fig. 5.8 (when rotating counterclockwise).

When vector control is not performed, the orientation (indicated by the red broken line) in relation to the magnetic flux phase is less than 90°. In addition to the active current (q-axis component of current) component that acts as torque, the motor current also includes the reactive current component that does not act as torque.

When vector control is performed, the current flows in a 90° orientation in relation to the magnetic flux. Utilizing vector control to always keep the magnetic flux and current orientation at 90° eliminates current phase lag and reactive currents during high-speed operation and allows for efficient operation.

5.2.3 Field Weakening Control

Field weakening control refers to increasing the motor torque during high-speed operation by weakening the magnetic flux of the part (field) that generates magnetic flux by controlling the d-axis component of the current.

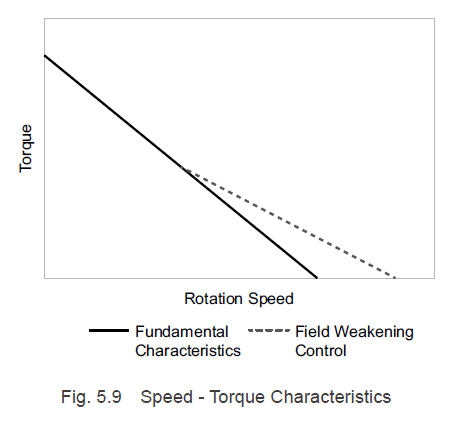

The fundamental characteristics of brushless motors are sloping torque characteristics such as those shown in Fig. 5.9. The torque generated in the motor is proportional to the motor current, so the higher the speed, the smaller the current value. We will explain the reasons for this below.

The voltage in each area when a brushless motor is rotating is represented by the below formulas.

The left side of Formula (5.2) indicates the applied voltage, the first term on the right side is the voltage applied to the winding resistance, the second term is the voltage due to the inductance component, and the third term is the back EMF.

From Formula (5.2):

As indicated by Formula (5.3), if the motor rotation speed increases, the inductance component causes an increase in the voltage drop and the back EMF rises, decreasing the motor current. For this reason, the brushless motor speed-torque characteristics are sloping characteristics such as shown in Fig. 5.9.

By performing field weakening control during high-speed operation, making the current flow in the d-axis negative direction, and weakening the field's magnetic flux, it is possible to lower the back EMF generated in the windings. Because the current becomes larger when back EMF decreases, the generated torque increases. This allows the speed range used during high-speed operation to be expanded (Fig. 5.9).

5.3.1 Speed Regulation

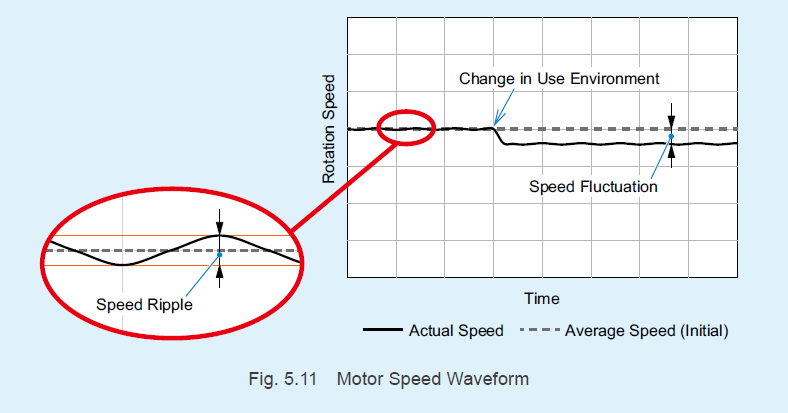

Speed regulation is an important specification for motors used for speed control. It's defined as the rate of speed variation when the load torque, power supply voltage, ambient temperature, or other factors in the usage environment change while the motor is operating at a set speed.

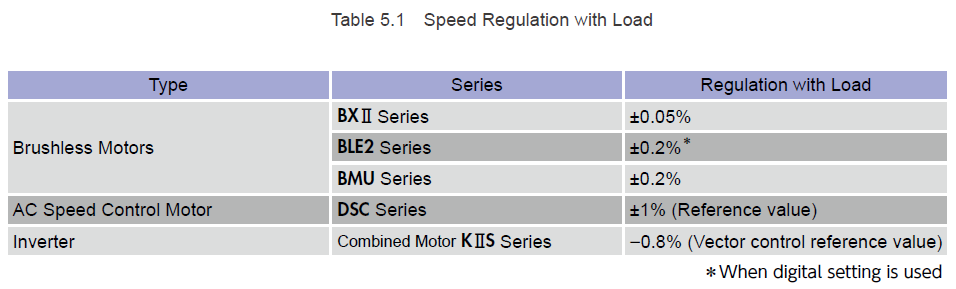

Oriental Motor's specification uses the rate of speed variation at the rated rotation speed when the following conditions are changed. Therefore, if the rated rotation speed is 3000 r/min and the speed regulation is +/-0.2%, the speed variation is +/-6 RPM.

Since speed fluctuation range depends on sensor detection accuracy, even if the operation speed is not 3000 r/min, the speed variation amount may still be approximately +/-6 RPM (at the motor shaft).

With Load: when a rated load is applied, assuming a no-load state

With Voltage: when the voltage changes within the allowable range, assuming a rated voltage

With Temperature: when the temperature changes within the ambient operating temperature range, assuming an ambient temperature of 25°C.

A brushless motor controls the motor speed in a closed-loop; based on the feedback speed calculated from the hall effect IC signals. The increased number of signals from the hall effect IC due to the rotors multi-polarity increases the detection accuracy of the rotation speed, resulting in low speed regulation, and allowing for operation at a speed close to the commanded speed.

With inverters (VFDs) that do not have a speed detector and perform sensorless speed control, rotation speed changes due to the changes in rated torque.

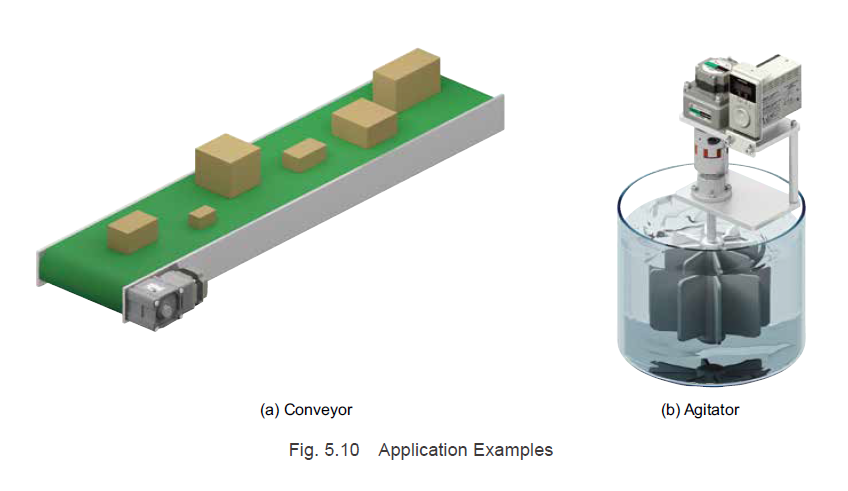

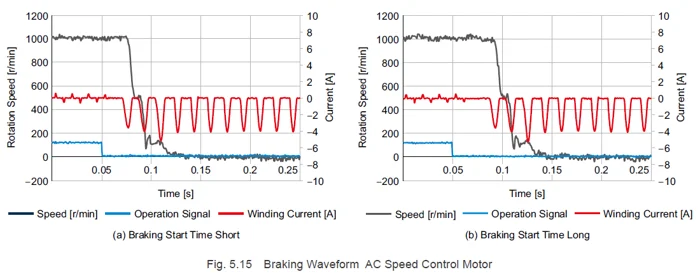

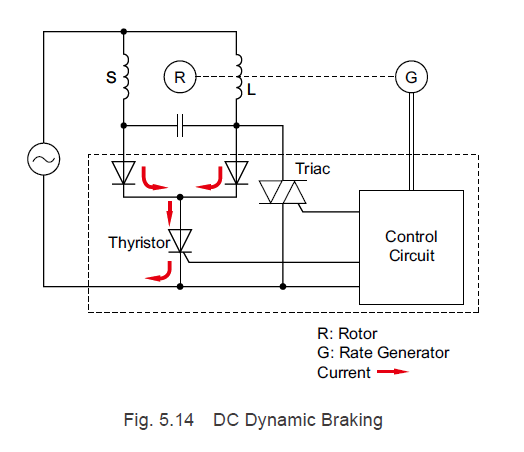

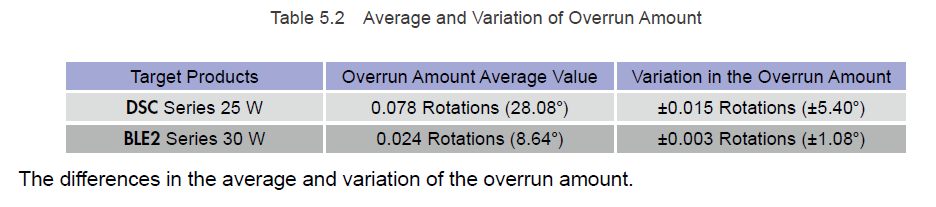

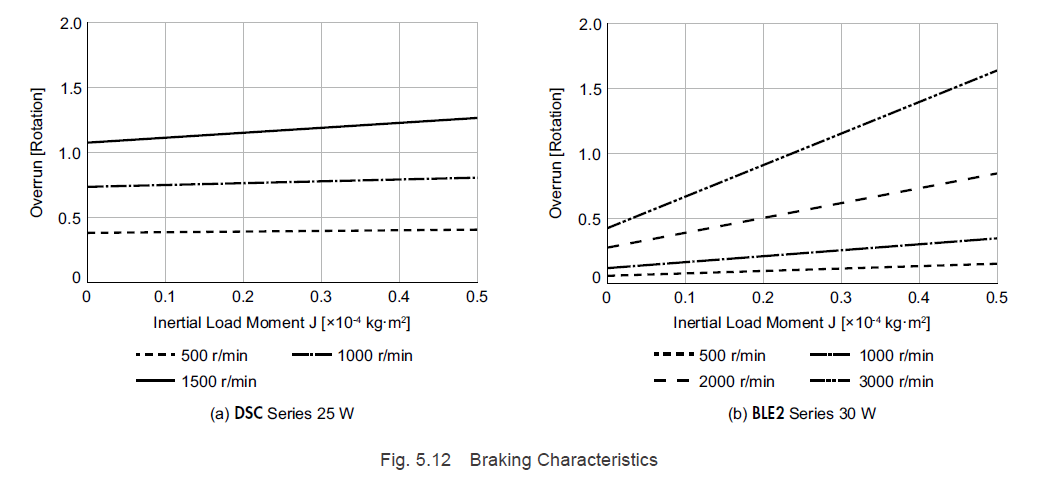

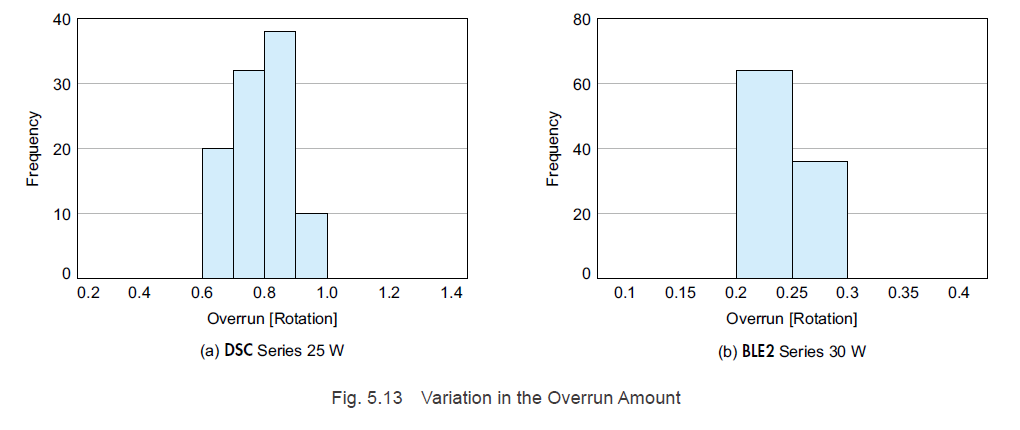

Due to accurate speed regulation, stable operation is possible through a conveyor with variable loads and weights, such as an agitator or discharge pump in which the liquid viscosity changes, and so on. In addition, this is appropriate for coating, heating, and other applications in which a fixed processing time is desired during conveyance.
