Gradually increasing national emission standards has become a general trend and a basic direction for the gradual optimization and development of engine companies. On October 13, 2015, at the Weichai Yangzhou Light Smart Power Base, not only witnessed the unveiling ceremony for the sale of WP3 engines, but also the introduction of Wang Zhijian, Director of the Weichai Engine Research Institute, and learned about Wei Chairui's dynamic product planning. The development progress of the five countries and Europe six products. Weichai's five products have long been heard, and the early announcement of the Euro 6 products made the happiness come too abruptly, showing Weichai’s confidence in product development and strength, and Weichai’s promotion of emission upgrades and the environment. Protection efforts.

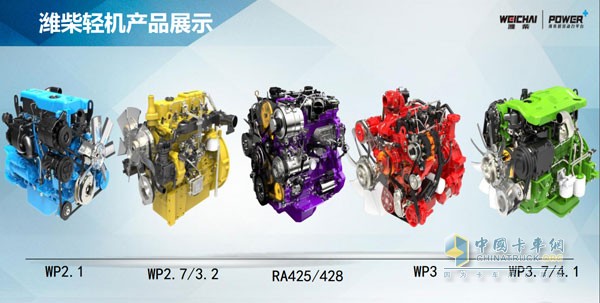

Weichai Light Product Show

China Truck Network learned that Weichai light machine has a total of 7 models in product R&D planning, including not only three models of China V commercial vehicle power (WP2.1, WP3, WP3.7/4.1), but also three types of engineering machinery power. (WP2.7, WP3, wp4.1), there is also a car power, which can be equipped with the national five products RA425/RA428 on passenger cars. As these products we have learned more or less, then Weichai Rui What kind of power is the Euro 6 engine? What products? What configuration? What are the advantages? Let us look forward to it.

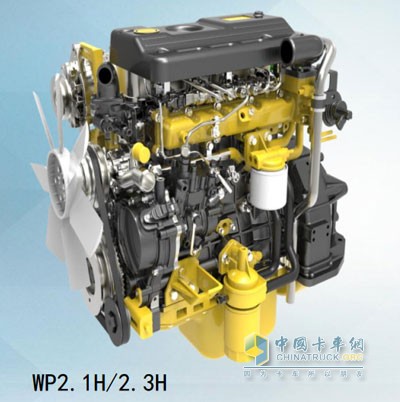

Weichai Light Europe Six Products WP2.1H/2.3H

The first thing we want to unveil is Weichai Euro 6 WP2.1H/2.3H, which has a power range of 52-80 kW. The boost power can be as high as 38.3 kW/L, and the fuel combustion efficiency and power have great advantages. The four-valve structure is adopted. The overall structure of the engine is compact, and the life of B10 can reach 300,000 kilometers. The range of its adaptation is very wide, and it can be used for pickups and general diesel version of small micro cards.

Weichai Light Europe Six Products WP2.1H/2.3H

Everyone must be curious about what technology makes this highly efficient engine reach Euro VI emission. It uses the technology of high pressure common rail + DOC + DPF + Hi-SCR. The post-processing system used is Hi-SCR. It is an efficient SCR system. It is understood that this "Hi-SCR" system can more quickly and easily reduce exhaust emissions, effectively reduce the customer's operating costs throughout the entire life cycle of the engine, and also ensure the highest product reliability and fuel of the engine. Efficiency can be said to be a secret weapon for achieving Euro VI emissions.

Weichai Light Europe Six Products WP3H

Weichai light machine Europe 6 products WP3H its power range is 70-118kW, its power up to 39.7kW / L, up torque up to 151Nm / L, the same four-valve modular design, the overall structure is compact, is conducive to reducing the overall engine The volume and quality, reduce the burden of engine operation, improve efficiency, its B10 life can reach 800,000 kilometers, has a great advantage in the current four countries with the same displacement engine, which uses the same high pressure common rail + DOC + DPF + Hi-SCR's technology may also be an overall technological measure of the Euro 6 engine in the future. It is understood that this engine will probably continue to be used on JAC's handsome bell light trucks.

Weichai Light Europe Six Products WP3H

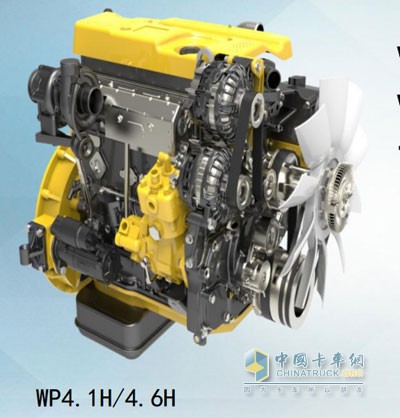

Weichai Light Europe Six Products 4.1H/4.6H

Weichai light machine Euro VI product WP4.1H has a power range of 103-140kW and a WP4.6H power range of 120-167kW. This engine will also be a power upgrade of Weichai light system with maximum displacement. 4.6L, ​​the power has been greatly improved, can be used for more power light trucks, so that lighter Weichai light coverage more extensive range, can be said to be a high-end light truck power. Moreover, according to statistics, the entire machine has extensively applied cutting-edge technology, with better performance and better reliability. The life of the B10 is as high as 800,000 kilometers, and a large number of plastic parts are also used on the entire machine to make the entire machine lighter. The greater improvement, the higher the operating efficiency, the same high-pressure common rail + DOC + DPF + Hi-SCR technology.

Weichai Light Europe Six Products 4.1H/4.6H

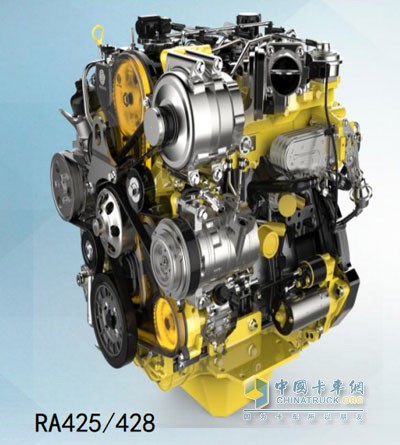

Weichai Light Europe Six Products RA425/428

The technical route of another high-end power RA425/428 of Weichai Light Europe 6 products is different. The system adopts common rail + EGR + DOC + DPF + SCR. This engine is a general SCR system used, but in the engine The EGR system was integrated to double check the exhaust gas. The RA425 has a power range of 80-110. The RA428 has a power range of 90-120. The aluminum cylinder head, four-valve, double overhead cam are used. Axis, with a secondary balancing mechanism, a more high-end configuration, higher combustion efficiency, is expected to match some of the mainstream pickup.

Weichai Light Europe Six Products RA425/428

China Trucking also learned that Weichai's Euro 6 engine will be a brand new and higher-end platform, and its performance will be further enhanced. It will be launched in stages next year. The new platform will not only match the Euro VI products. In the JAC light truck, it will gradually open and match with other brand light trucks, and the welfare of the Weichai fans will soon come.
